FM 512Hz Transmitter locator underground pipeline inspection with receiver

FOB Reference Price:Get Latest Price
US $98-688 / Cases | 1 Case/Cases (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WOPSON
Model Number:
WPS-512T
Style:
Hidden Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Technology:
Pan / Tilt / Zoom
Type:
Digital Camera
Supply Ability
Supply Ability:
1000 Case/Cases per Month Transmitter locator underground pipeline inspection with receiv
Packaging & Delivery
Packaging Details
as customers'request
FM 512Hz Transmitter locator underground pipeline inspection with receiver
Port
shenzhen
Lead Time :
within 7days after payment
Video Description

FM 512Hz Transmitter locator underground pipeline inspection with receiver

Pipe inspection locator sonde 512Hz transmitter for tracking

SPECIFICATION

TRANSMITTER

Will work with any 512 Hz receiver.

Frequency:512Hz
Power source: #357 button cell noncharge

Battery life: 4 hours

Size1: Φ22.5X48 mm

Size2: Φ16x45mm

Range(cast iron) : up to 10ft

Range(non-metallic): up to 15ft

Minimum line size: 1”

Minimum P-trap size: 2”

Thread: Metric 15mm/ Pitch 1mm

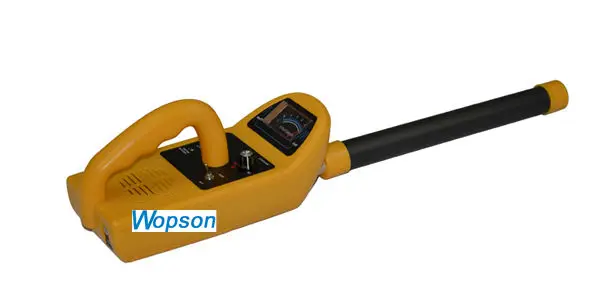

RECEIVER

The transmitters is ideal for locating in small cast iron and non-metallic lines P-traps,or ginding septic tanks.

Frequency:512Hz
Power source:6 AA Alkaline

Battery life:3-4 hours

Size:512X110X118mm

Weight:810G

Operating temperature:-20to+50°C

Controls:On-Off/Sensitivity,Near/Far toggle switch

Outputs:Signal strength meter,speaker,earphone,battery indicator

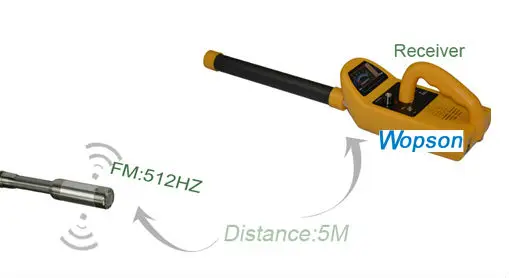

HOW TO WORK?

1 The transmitter or camera head with transmitter is pushed into the block or leaking pipe, send 512hz signal.

2 The 512hz receiver receives the signal, locate according to the pointer&sound&sensitivity.

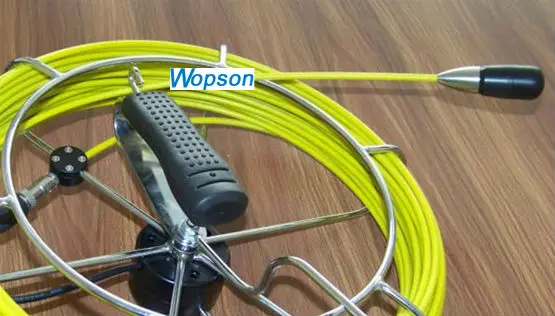

512hz Receiver work with camera built in transmitter

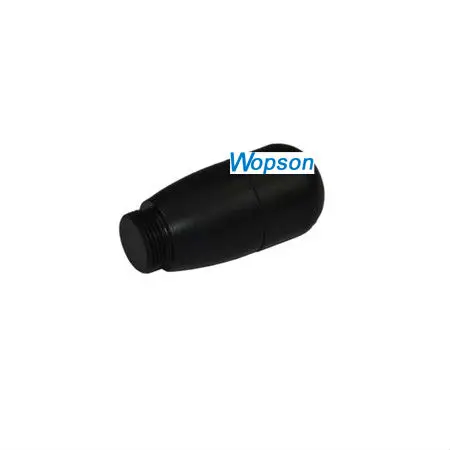

About 512hz transmitter

Work with any standard 512hz Receiver!







MORE PICTRUES

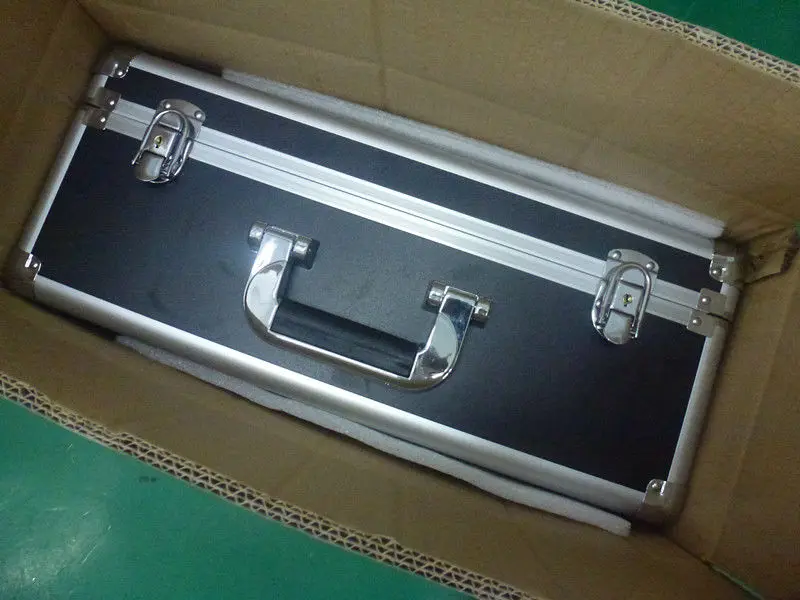

PACKING

1 pc carton
Size : 59*26*18cm
Gross weight: 3.8KG
Volume weight: 6KG





EXHIBITION







Pipe inspection locator sonde 512Hz transmitter for tracking

Also can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.



POPULAR PORDUCT OF PIPE INSPECTION CAMERA

Certifications

All the production have passed FCC,CE and Rohs inspection.

Assembly Process and production capacity.

Total 7 assembly linesand packaging lines,5000sets production capacity monthly.

Factory equipment and machines.



Wopson advantage



Our advantages
♦ Direct manufacturer;                              ♦ Customized development;
♦ National High-tech Enterprises              ♦ 16x patents;
♦ Low Cost and Affordable Price;             ♦ 9yeas OEM&ODM experience;
♦ Rohs,FCC,CE,EMC Certification;          ♦ ISO9001 certification;
♦ TQM operation;                                      ♦ Min. Order,1 Set/Sets;
♦ Client on the first!

Contact Us


Manager: David                                                                      Mobile : 8613923716324

Company:ShenZhen Wopson Electrical Co., Ltd                  Phone:8675584691436
Address:
3F,No.4BLDG, Chunhu Industrial Zone , E'gongling,Pinghu, Longgang District,Shenzhen City, P.R.C
