underground cable finder for pipe location

FOB Reference Price:Get Latest Price
US $158-1,198 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WOPSON
Model Number:
WPS-512T&R
512hz reciever:
for underground drain pipe inspection location
512hz transmitter:
Pipe inspection locator sonde 512Hz transmitter for tracking
Range (cast iron:
up to 10 ft
Range (non-metallic)::
up to 15 ft
funtion:
accurately locating blockage and leakage pipe
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
As customer's request (512hz transmitter&reciever)
Port
SHENZHEN
Lead Time :
within 7 days after payment(512hz transmitter&reciever)

We are professional manufacturer of pipe inspection camera and pipe locator

underground cable finder for pipe location

SPECIFICATION

512T Size.jpg

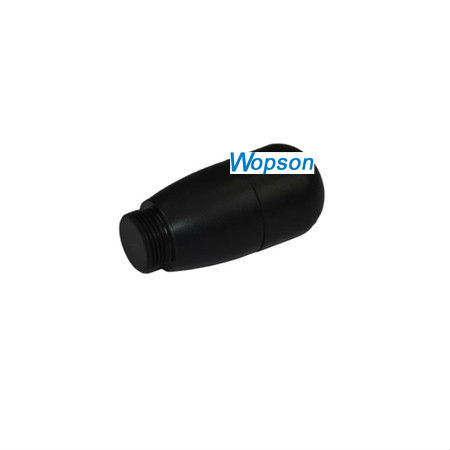

TRANSMITTER

Will work with any 512 Hz receiver.

Frequency:512Hz
Power source: #357 button cell noncharge

Battery life: 4 hours

Size1: Φ22.5X48 mm

Size2: Φ16x45mm

Range(cast iron) : up to 10ft

Range(non-metallic): up to 15ft

Minimum line size: 1”

Minimum P-trap size: 2”

Thread: Metric 15mm/ Pitch 1mm

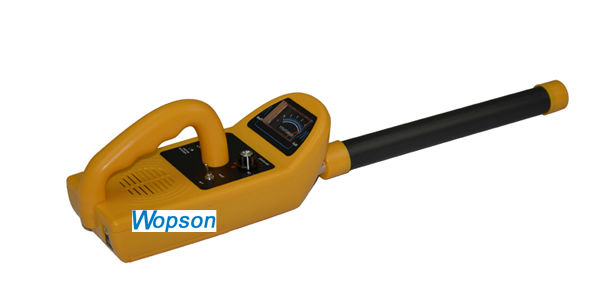

RECEIVER

The transmitters is ideal for locating in small cast iron and non-metallic lines P-traps,or ginding septic tanks.

Frequency:512Hz
Power source:6 AA Alkaline

Battery life:3-4 hours

Size:512X110X118mm

Weight:810G

Operating temperature:-20to+50°C

Controls:On-Off/Sensitivity,Near/Far toggle switch

Outputs:Signal strength meter,speaker,earphone,battery indicator

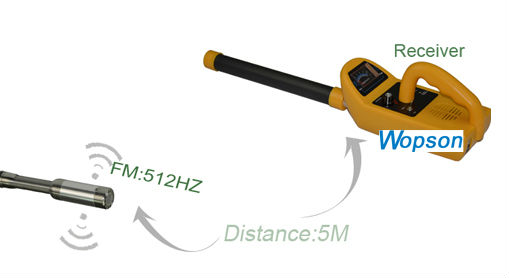

HOW TO WORK?

1 The transmitter or camera head with transmitter is pushed into the block or leaking pipe, send 512hz signal.

2 The 512hz receiver receives the signal, locate according to the pointer&sound&sensitivity.

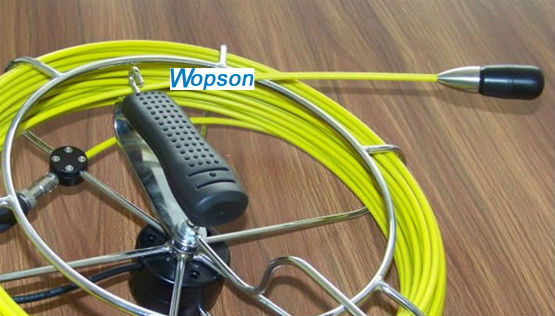

512hz Receiver work with camera built in transmitter

512T Size1.jpg



50mm camera with built in transmitter work with receiver.jpg



About 512hz transmitter

Work with any standard 512hz Receiver!






MORE PICTRUES




512T dd.jpg

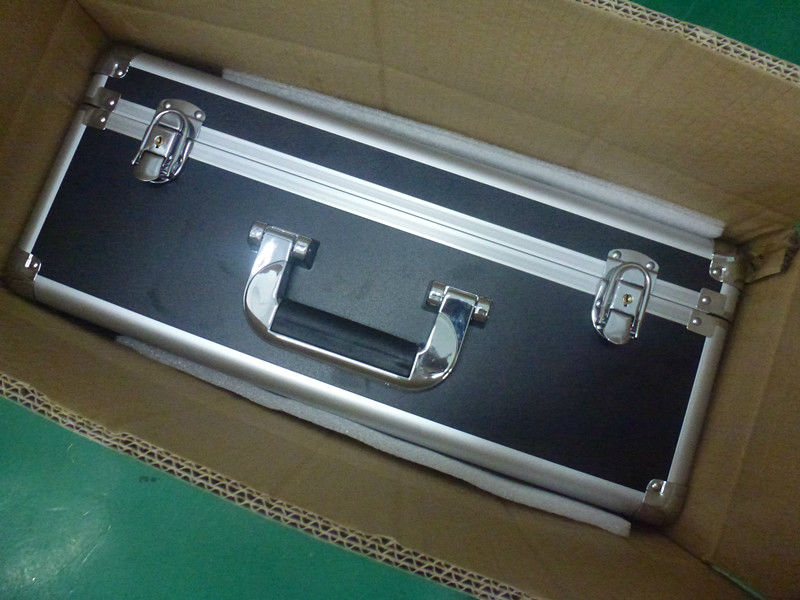

PACKING

1 pc carton
Size : 59*26*18cm
Gross weight: 3.8KG
Volume weight: 6KG

P1050727_.jpg P1100718_.jpg

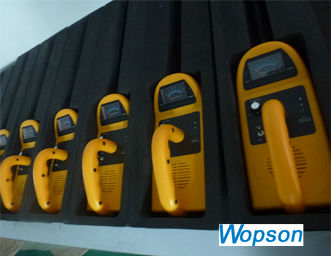

FACTORY

IMG_0120__




EXHIBITION

Fair



CERTIFICATE

underground cable finder for pipe location

Also can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
