CCTV video meter/foot counter chimney inspection camera

FOB Reference Price:Get Latest Price
1 Set/Sets Pan & Tilt Chimney Inspection Camera (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WOPSON
Model Number:
WPS-140-R
Type:
Digital Camera
Style:
Mini Camera
Sensor:
CMOS
Technology:
360degree rotating camera
Special Features:
Waterproof / Weatherproof
Certification:
CE, FCC, RoHS
Camera Diameter:
70mm*140mm
Sensor Size:
1/4inch
Camera Viewing Angle:
120degree
Light Rescource:
18PCS white LEDS
Cable Length:
20m(standard), as your requirement
Fiberglass Diameter:
6.5mm
Camera Used for:
chimney inspection
Service:
OEM,ODM
Warranty:
12 months
Supply Ability
Supply Ability:
1000 Set/Sets per Month Pan & Tilt Chimney Inspection Camera
Packaging & Delivery
Port
Shenzhen



                        sunshade 7inch monitor video record roof chimney inspection camera

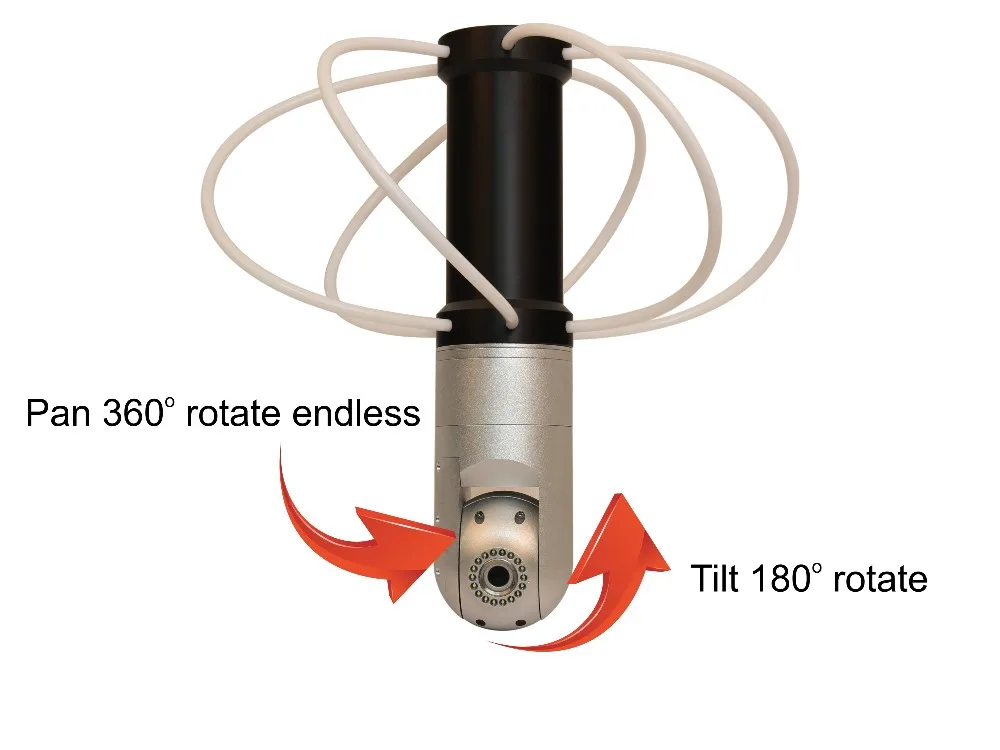

Pan & Tilt Camera

1.Camera size

Φ70mm*140mm

2.Rotatable:

horizontal 360°vertical 180°

3.Camera Housing material

aluminum alloy

4.Camera lens material

sapphire glass

5.Sensor size

1/4 inch

6.Pixels

PAL:720*576   NTSC:720*480

7.View range

120 °

8.Illumination

18pcs bright light LED With adjustable brightness

9.Camera work current

100MA

10.Camera power supply

DC 12V

11.Operating Temperature

-10°C to +50°C

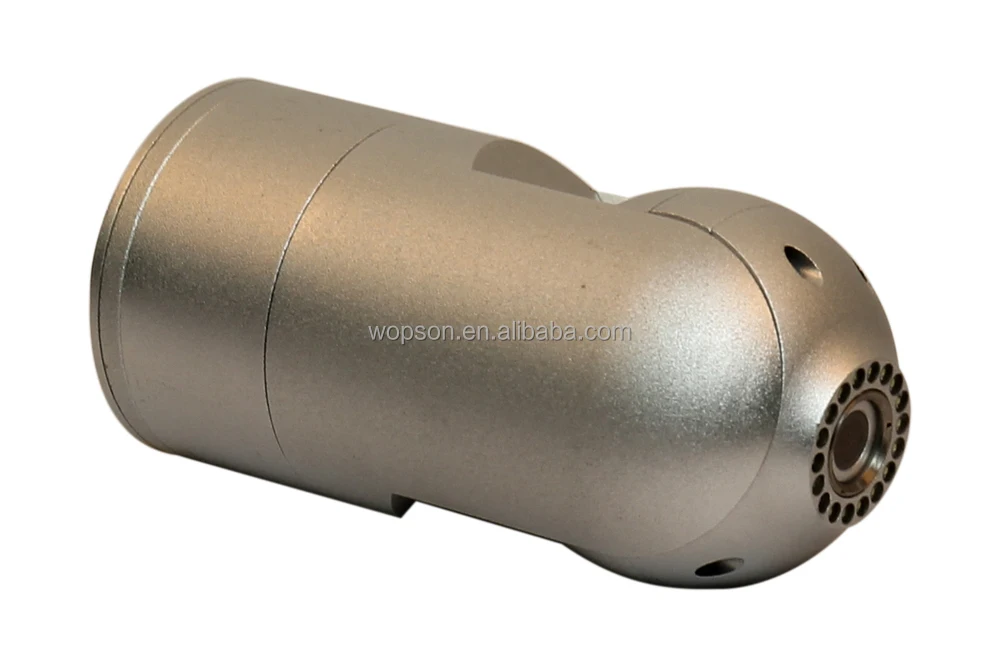

camera for chimney inspection

                           pan & tilt chimney camera -2

 Monitor

1.Monitor size

7inchTFT-LCD color monitor

2. Pixels

1440*234

3. Monitor power supply

DC 12V

4.OSD language

English

5.Up, down left, right adjustable



6. Model

 16:9 & 4:3 model

7.Shock absorber hinges also acts as sun visor

8.Waterproof connector



9.Operating Temperature

-10°C to +50°C

7 inch monitor

 DVR

1.DVR power supply

12V

2.DVR work current

200MA

3.Storage medium

SD card (32G)

4.Digital clock and digital calendar

5.Battery level display



6. Pixels

720*567(D1)

9.Picture sanp and movie record



10.Movie format

 AVI

11.Microphone Audio record



12.Stereo earphone output



control box

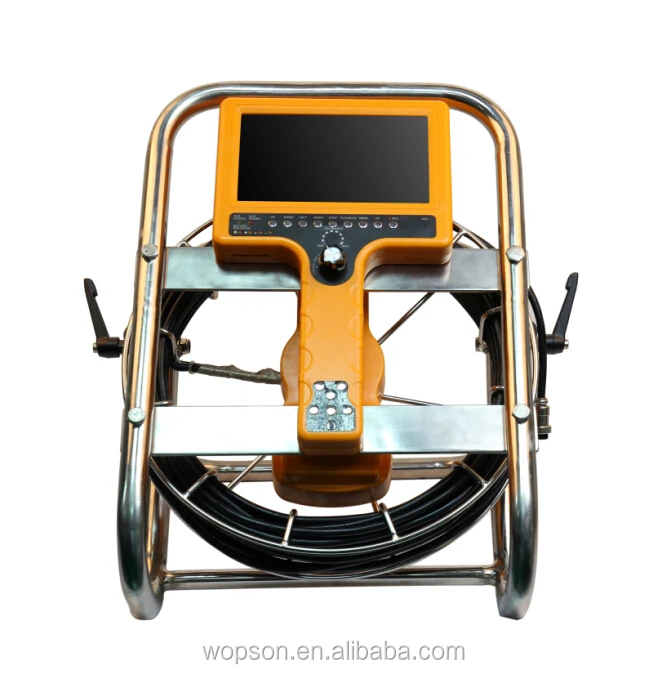

 Cable Wheel

1.Cable size

430X330(W)X175(H)mm

2.Wire material

Soft cable

3.Fiberglass length

20M(standard), as your requirement

4.Fiberglass diameter

Φ6.5mm

5.Fiberglass color:

Black


 Battery

1.Battery

12V 4000MAH rechargeable li –ion battery(18650)

2.Used time

7 hours

 Charger

1.Input

AC100-240V~50/60Hz

2.Out put

DC 12V/1000MA

3.DC plug diameter

2.1M

 Skids Size

SKIDS1:φ300MM



As your requirement





 ABS Carry Case

Case Size

520*435*200MM

Case Material

Engineering Plastic

Empty Case weight

5.9KG

Case Color

Orange/Green/Black

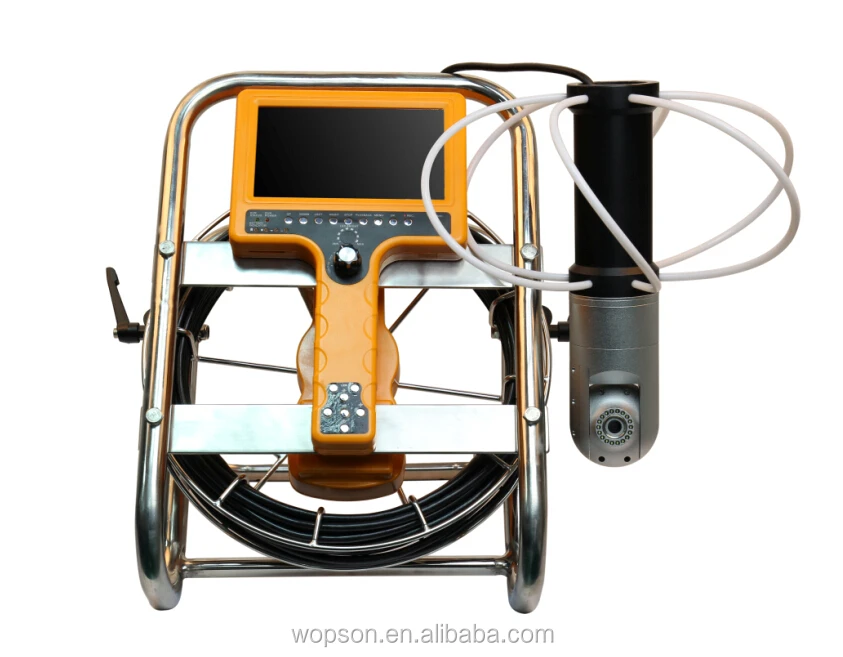

chimney inspection camera



photo 2






Certificate:

Also can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
