Telescopic pole inspection cameras for tank pipe

FOB Reference Price:Get Latest Price
US $398-999 / Sets | 1 Set/Sets tank telescopic pole inspection cameras (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WOPSON
Model Number:
WPS-4LG
Type:
Digital Camera
Style:
Mini Camera
Sensor:
CMOS
Technology:
pole camera
Special Features:
Waterproof / Weatherproof
Certification:
CE, FCC, RoHS
Camera Diameter:
23mm*510mm
Sensor Size:
1/4inch
Camera Viewing Angle:
120degree
Light Rescource:
12PCS white LEDS
Cable Length:
3.6M
Camera Used for:
Roofs, air-conditioning, the nest, the ceiling inspection
Service:
OEM,ODM
Warranty:
12 months
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month telescopic pole video camera
Packaging & Delivery
Packaging Details
telescopic pole video camera ;
Material: fire board + Aluminum alloy
Size 1:116.5*14.5*27.5cm
Net/Gross weight: 8.5KG/8KG

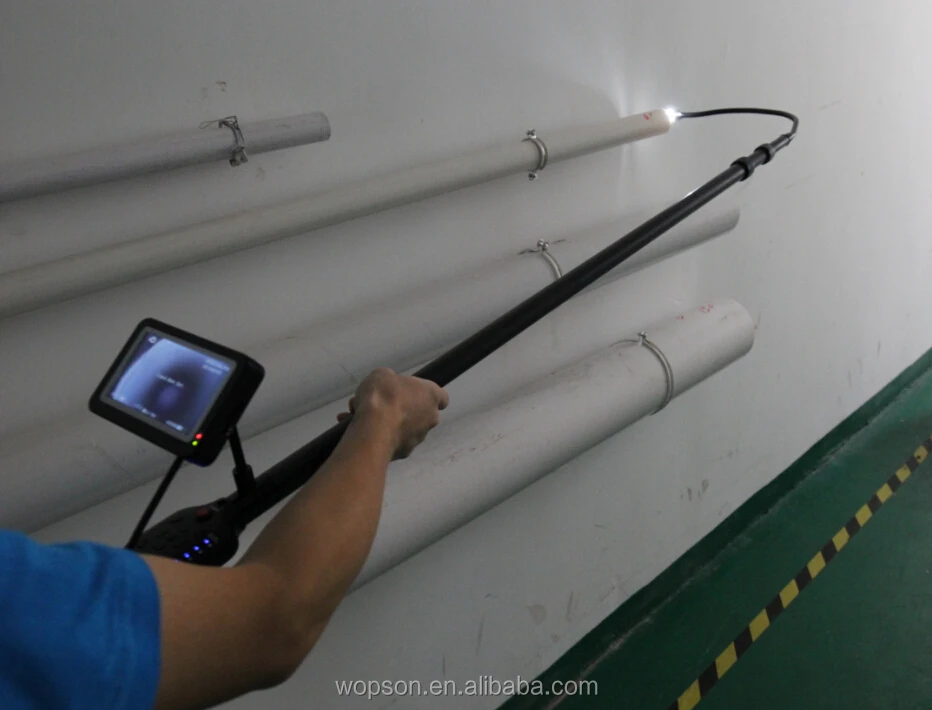

telescopic pole inspection cameras for the roof tank pipe inspections WPS-4LG
Port
Shenzhen
Lead Time :
3~7days
Video Description

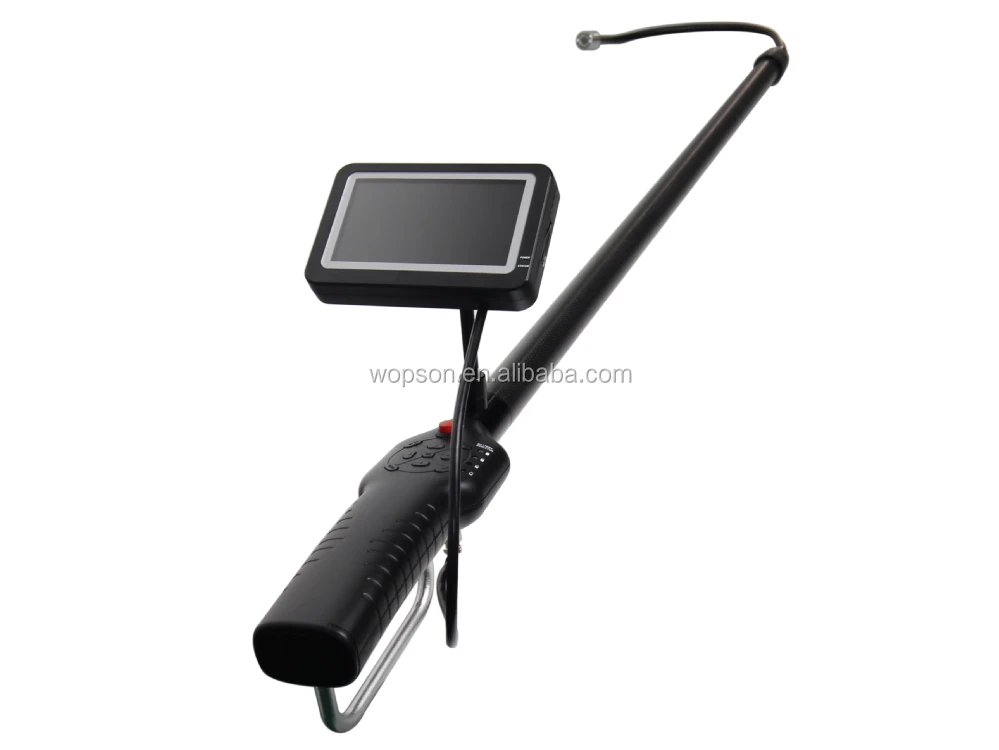

flexible telescopic pole inspection camera for the roof inspection WPS-4LG




Main Features:



1/4 inch color camera, 120degree wide view angle;

Stainless steel camera head, IP68 waterproof level;

Sapphire glass lens cover, 12 whites LEDs;

Diameter of camera:23mm, suitable for pipe diameter from 25mm to 150mm;

3 joints of telescopic pole, pole material: carbon fiber;

4.3 inch TFT LCD monitor;

Rechargeable high capacity Li-ion battery(5200MAH) for over 420 minutes continuous working;

Telescopic pole total length:3.6m



Component Specification



CAMERA

MONITOR

Camera size: ø23mmX510mm(L)
Sensor size:1/4 inch
View angle:120°
LEDs adjustable
Cameralight:12PCS Highlight LEDS
TotalPixels:PAL:720X576;
NTSC:720X480
Camera glass material: sapphire glass
Camera shell material: stainless steel

Size: 4.3inch
Resolution: 480(RGB)X272
OSD Language: English
Display Ratio: 16:9
Power Supply: DC 4.2V
Storage medium: SD card(max 32G)
Digital clock and digital calendar
Battery level display
DVR Total Pixels:720X576 (D1)
Picture snap and movie record
Movie format: AVI
Microphone Audio record
Stereo earphone output

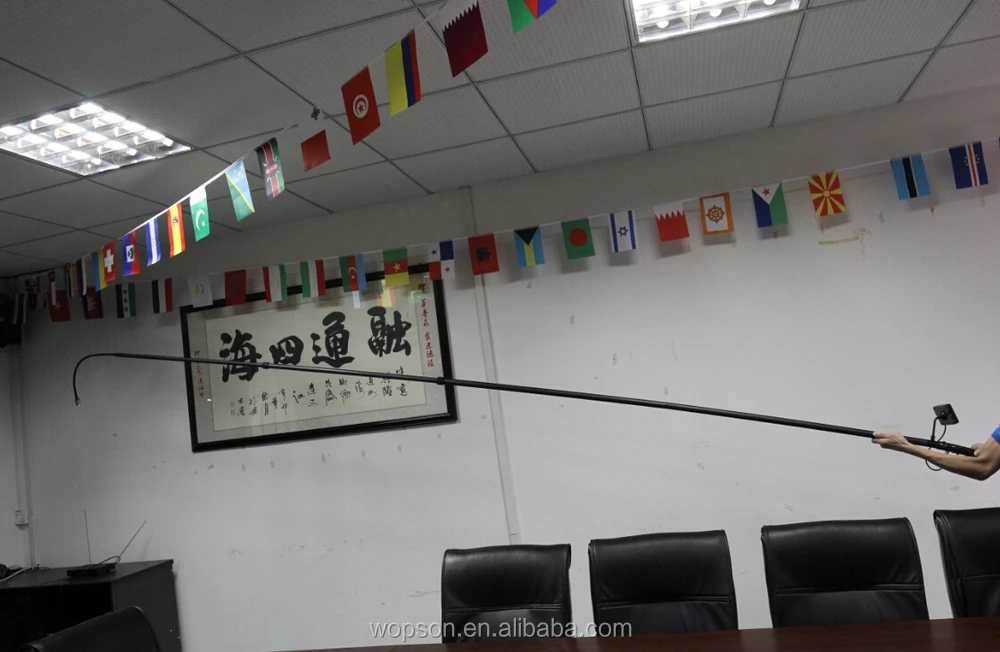

TELESCOPIC  POLE

LI-ION BATTERY

Pole material: carbon fiber

Joints of telescopic pole:3 joints

The minimum length:1080mm

The maximum length:2850mm

Total length:3600mm

Total Power:4.2W
Charge time:4hours
Protective voltage:9.5V
4.2V  5200MAH  Li-ion
battery(two 18650)
Work time: 240minutes

 CHARGER

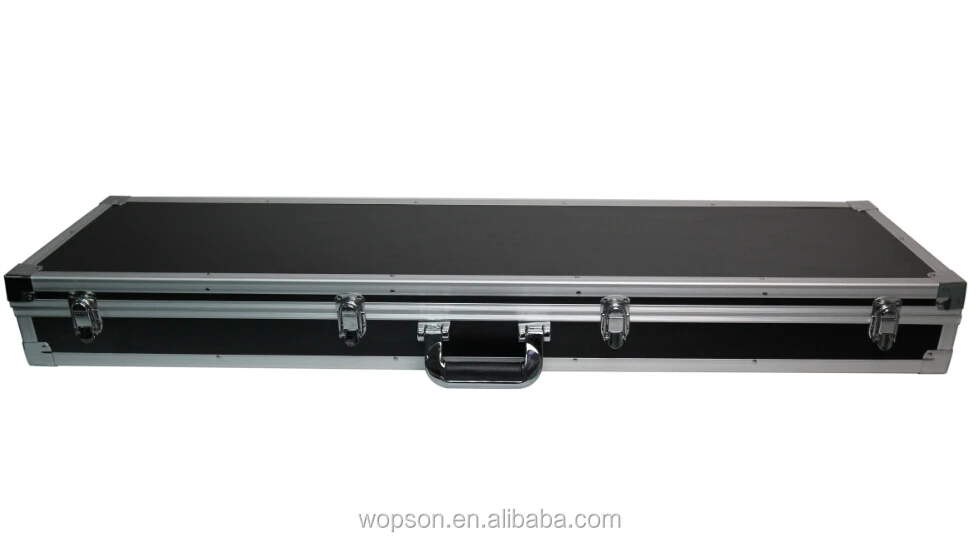

CASE

Input:AC100-240V~50/60Hz
Output: DC 4.2V/1500MA
DC plug diameter:2.1mm

Material: fire board + Aluminum alloy

Size 1:116.5*14.5*27.5cm

Net/Gross weight: 8.5KG/8KG

                                    .jpg

 WPS-4LG-3


.jpg



1 .jpg2.jpg3.jpg



Certifications

All the production have passed FCC,CE and Rohs inspection.

Assembly Process and production capacity.

Total 7 assembly linesand packaging lines,5000sets production capacity monthly.

Factory equipment and machines.



Wopson advantage



Our advantages
♦ Direct manufacturer;                              ♦ Customized development;
♦ National High-tech Enterprises              ♦ 16x patents;
♦ Low Cost and Affordable Price;             ♦ 9yeas OEM&ODM experience;
♦ Rohs,FCC,CE,EMC Certification;          ♦ ISO9001 certification;
♦ TQM operation;                                      ♦ Min. Order,1 Set/Sets;
♦ Client on the first!
