Pipe inspection camera with fiberglass cable&video camera&keyboard

Customs Data
FOB Reference Price:Get Latest Price
US $1,380-2,580 / Sets | 1 Set/Sets (Min. Order)
Contact Supplier Start Order
Loading... Place Sample Order
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WOPSON
Model Number:
WPS-716CDKN
Type:
Analog Camera
Style:
Bullet Camera
Sensor:
CCD
Technology:
Pinhole
Special Features:
Waterproof / Weatherproof
Operating temperature:
-10 to 50 degrees Celsius
Storage medium:
SD card(max 32G)
Sensor size:
1/4 inch
Diameter of camera:
50*76mm
Camera work current:
100MA
Camera power supply:
DC 12V
View angle:
120°
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton package & as customers required
Port
Shenzhen
Lead Time :
Within 2-3 days after payment
Video Description

MODEL:WPS-712DNKC



Applicaiton

Pipe in1.JPGspection camera with fiberglass cable&video camera&keyboard



Component Specification  Underwater Video Camera Inspection Camera with DVR for Pipe

SELF-LEVELING INSPECTION CAMERA

Camera Size

Φ 50mm*L76mm

Camera Housing Material

Stainless steel

Sensor Size

1/4 inch

Total Pixels

PAL:720*576   NTSC:720*480

View Range

120 °

Illumination

30PCS white LEDS

Waterproof  Level

IP68

Camera Power Supply

DC 12V

Operating Temperature

-10°C to +50°C



50mm camera.jpg



CABLE

Cable Size

770(L)X371(W)X810(H)mm

Wire Material

Fiberglass rod with meter counter

Fiberglass Length

60m/120/140m

Fiberglass Diameter

Φ9mm

Fiberglass Color

Yellow




Keyboard

Keyboard Size

220X118X20mm

Language

English

Keyboard interface

USB

Text edit line:

PAL 28 letter 15line  NTSC 26 letter 12 line

Max edit page

4pages



 .jpg

MONITOR

Monitor Size

7 inch TFT color monitor

Pixels

1440*234

Monitor Power Supply

DC 12V

OSD Language

English

Up, down left, right adjustable

16:9 & 4:3 model




CONTROL BOX

Storage Medium

8GSD card (max 32G)+card reader

Digital Clock and Digital Calendar

Battery Level Display

Total Pixels

720*567(D1)

Picture Snap and Movie Record

Movie Format

 AVI

Microphone Audio Record

DK control box





BATTERY

CHARGER

CARRY CASE

Battery

12V 4000MAH rechargeable li-ion battery(18650)

Input

AC100-240V~50/60Hz

Case Size

Color

 L520*W435*H200mm



Green/ Orange/ Black

Used Time

>260minutes

 Plug Diameter

2.1m

Material

Engineering Plastic

battery carry case.jpg



DETAILS           Video Audio Recording sewer inspection camera




HOW TO CONNECT THE MACHINE?

712 connecting way.jpg



PACKING

2pcs carton
1:53*48*22cm
2:95*90*45cm
Volume weight:42KG

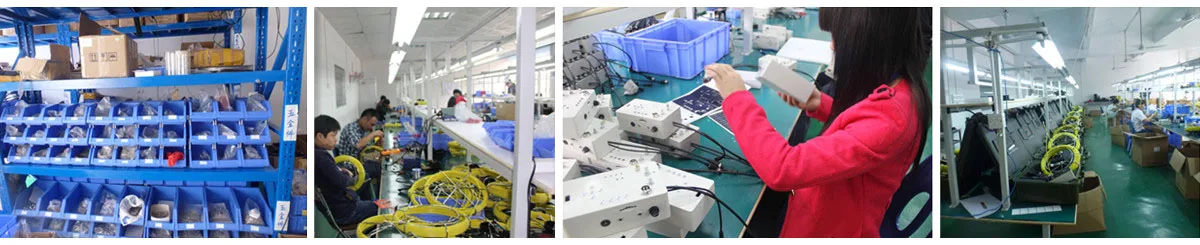

FACTORY

IMG_0120__




EXHIBITION

Fair



CERTIFICATE

Pipe inspection camera with fiberglass cable&video camera&keyboard

Also can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
